HS Umformtechnik presents at POWTECH 2025

stainless steel pipe systems for pneumatic conveying systems: We produce stainless steel pipe bends, pipe couplings, branch pipes, reducers, material distriburos, suction lances - standard measurements - in stock - custom made acc. your drawing/sample
Visit us in hall 12 - booth 446, we like to inform you about our products:

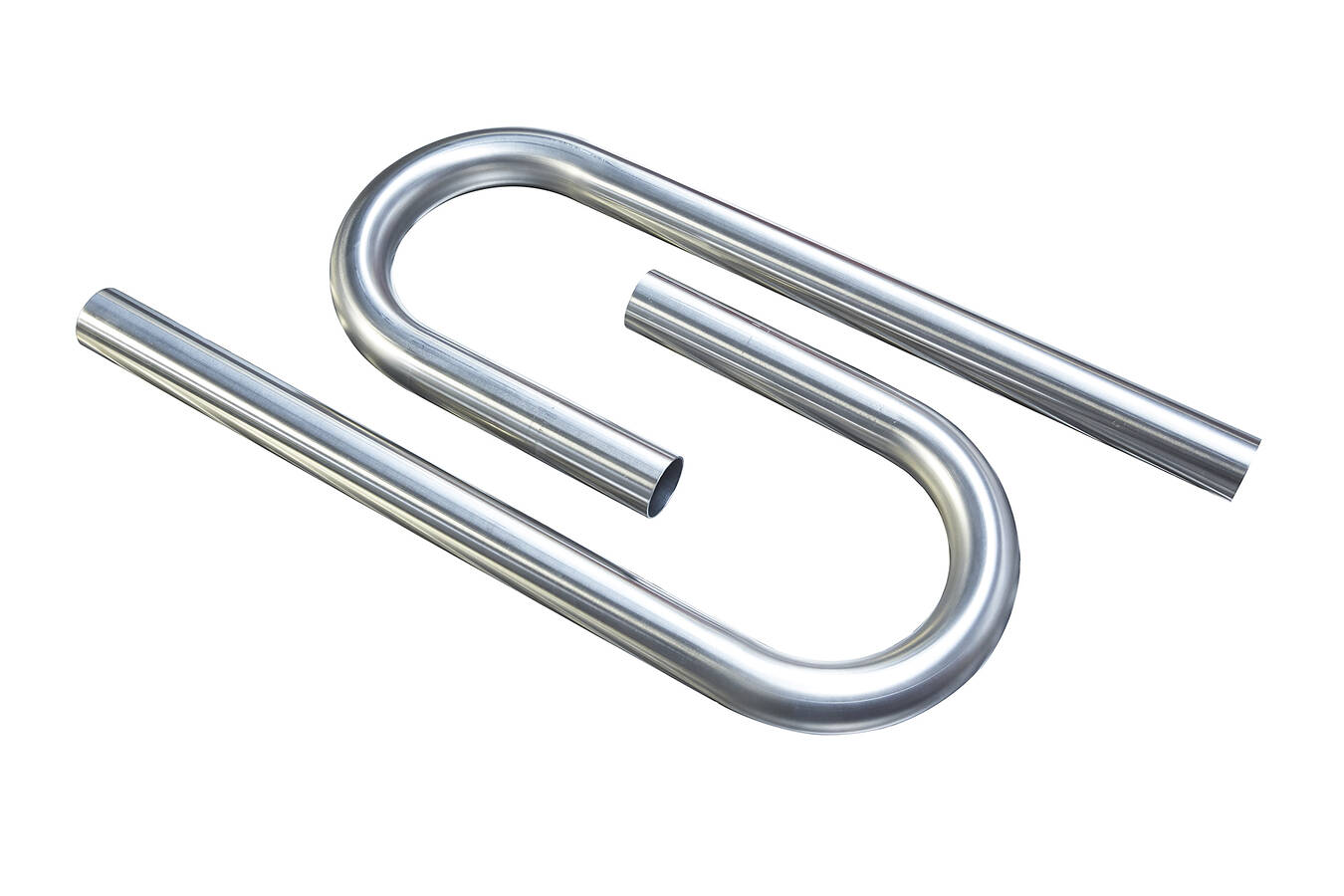

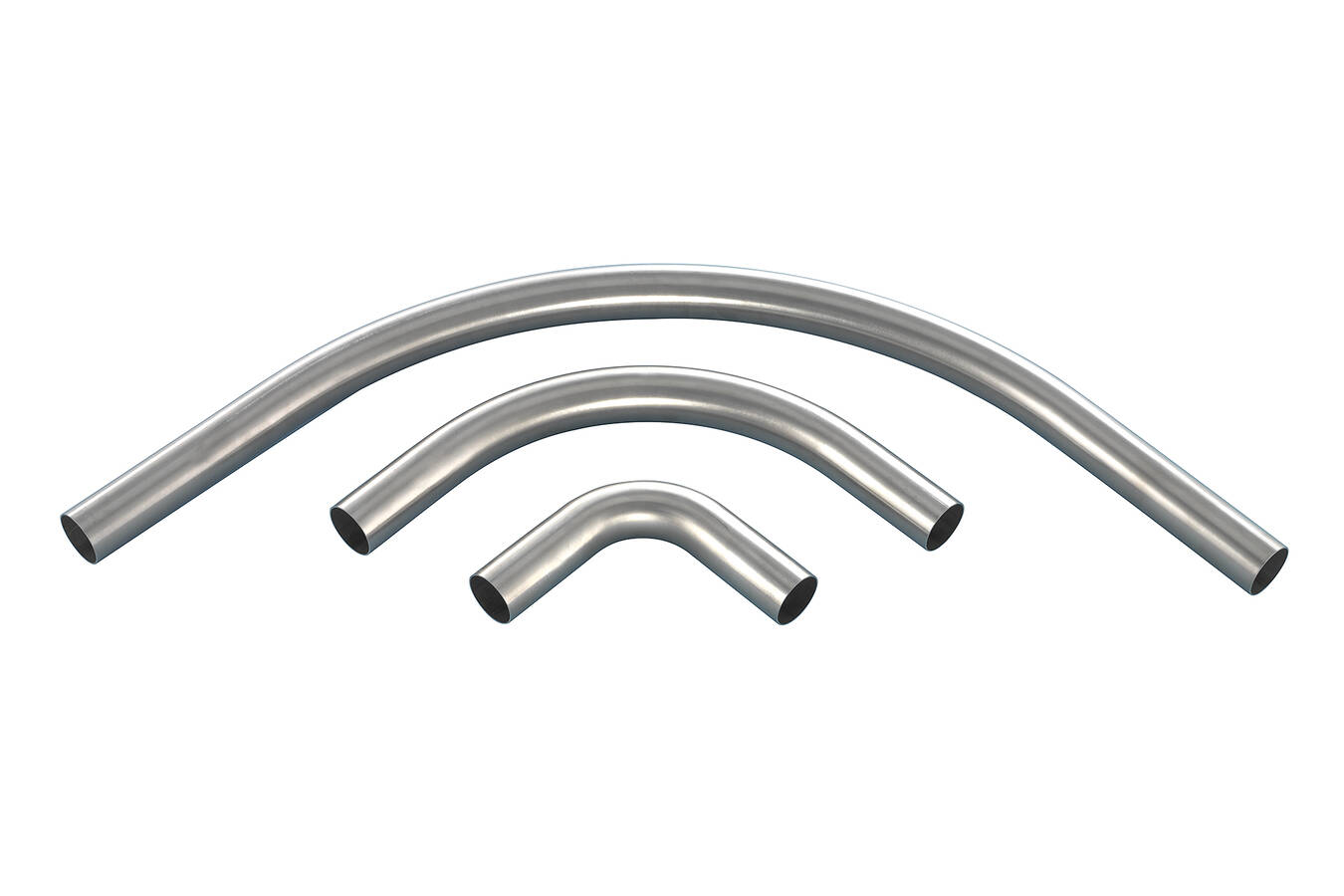

Stainless steel pipe bends

  • Material: AISI 304 / 1.4301
  • Diameter 38.0 mm - 206.0 mm
  • Radii: 75 mm - 1500 mm
  • for pneumatic conveying systems
  • available - ex stock
  • other materials / other measurements on demand

Highly wear-resistant pipe bends

  • HVA NIRO® highly wear-resistant stainless steel pipe bends

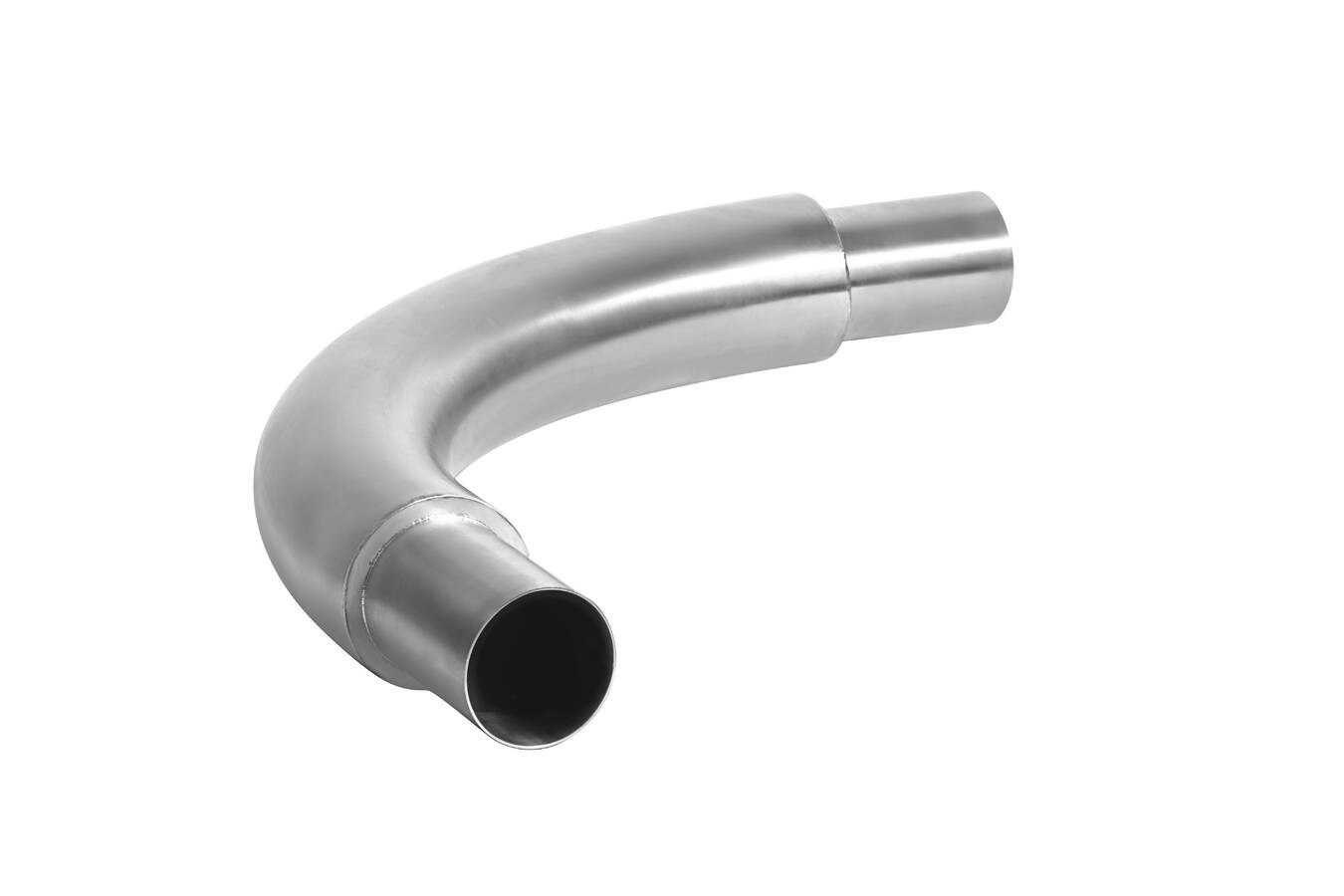

  • Double-skin pipe bends (DWR) - stainless steel

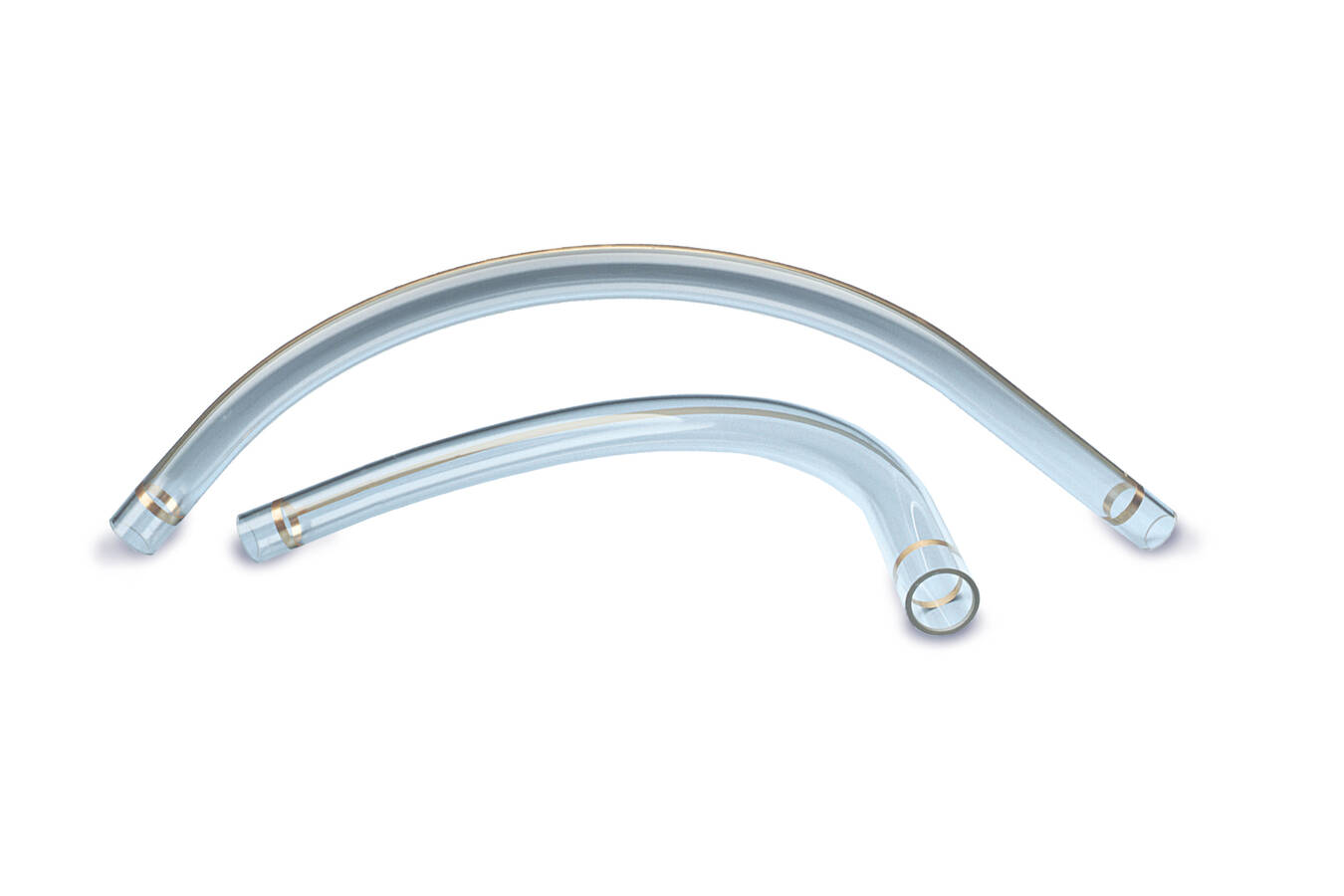

  • glass pipe bends, borosilicate glass 3.3

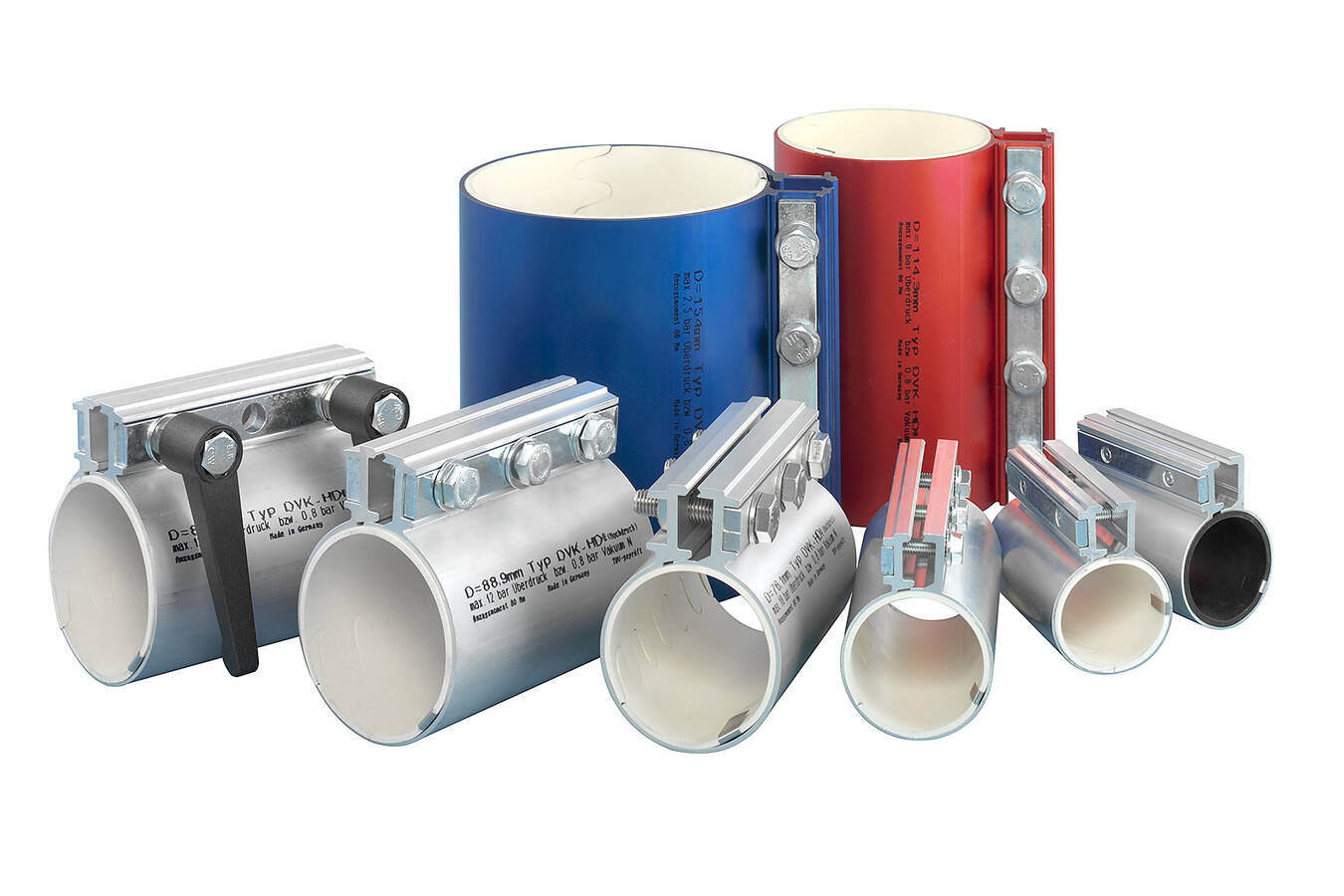

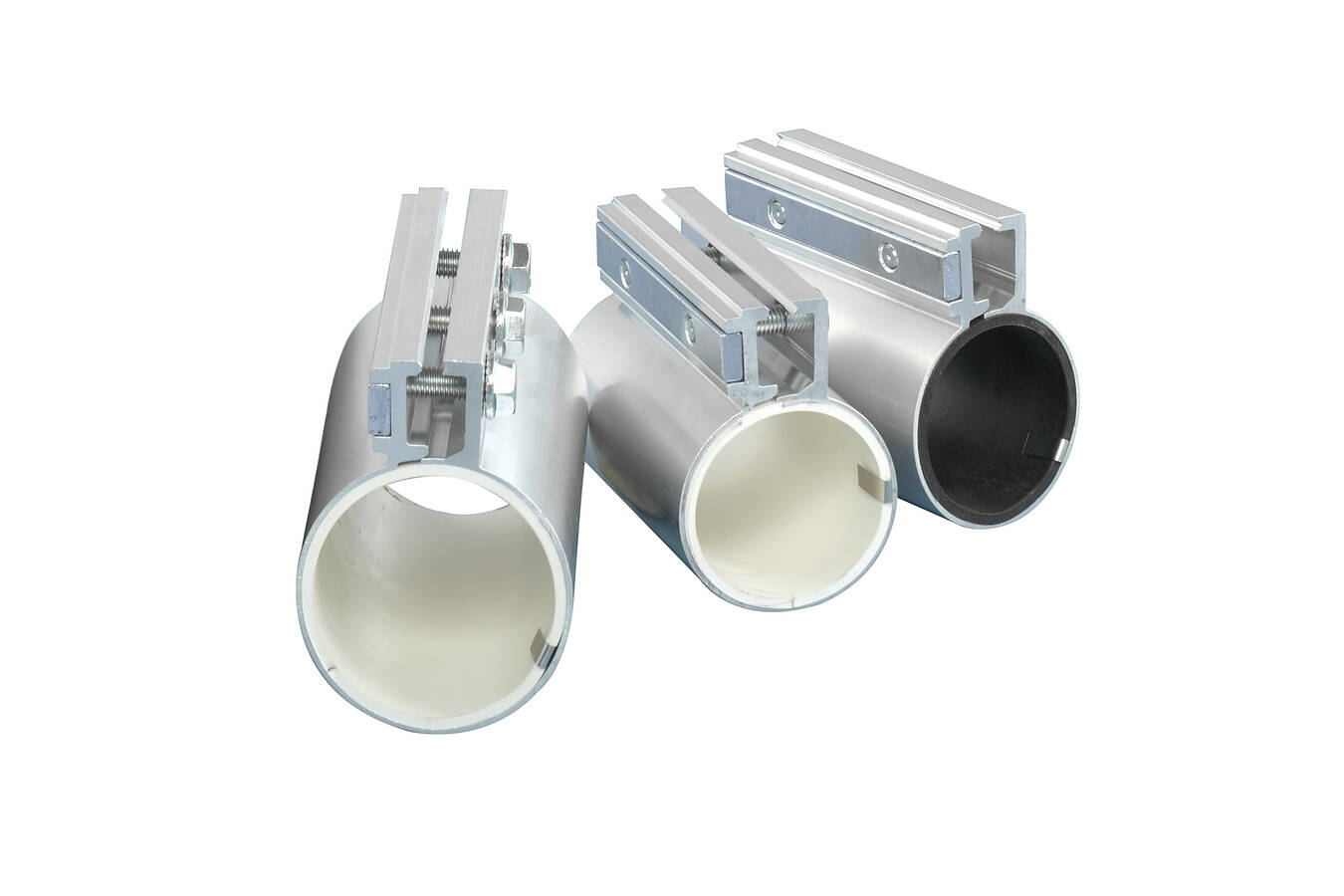

Pipe couplings type DVK 6

  • for suction conveying
  • Diameter: 33.7 mm - 110.0 mm
  • with gasket acc. purpose (natural rubber, nitrile, EPDM, silicone, viton)

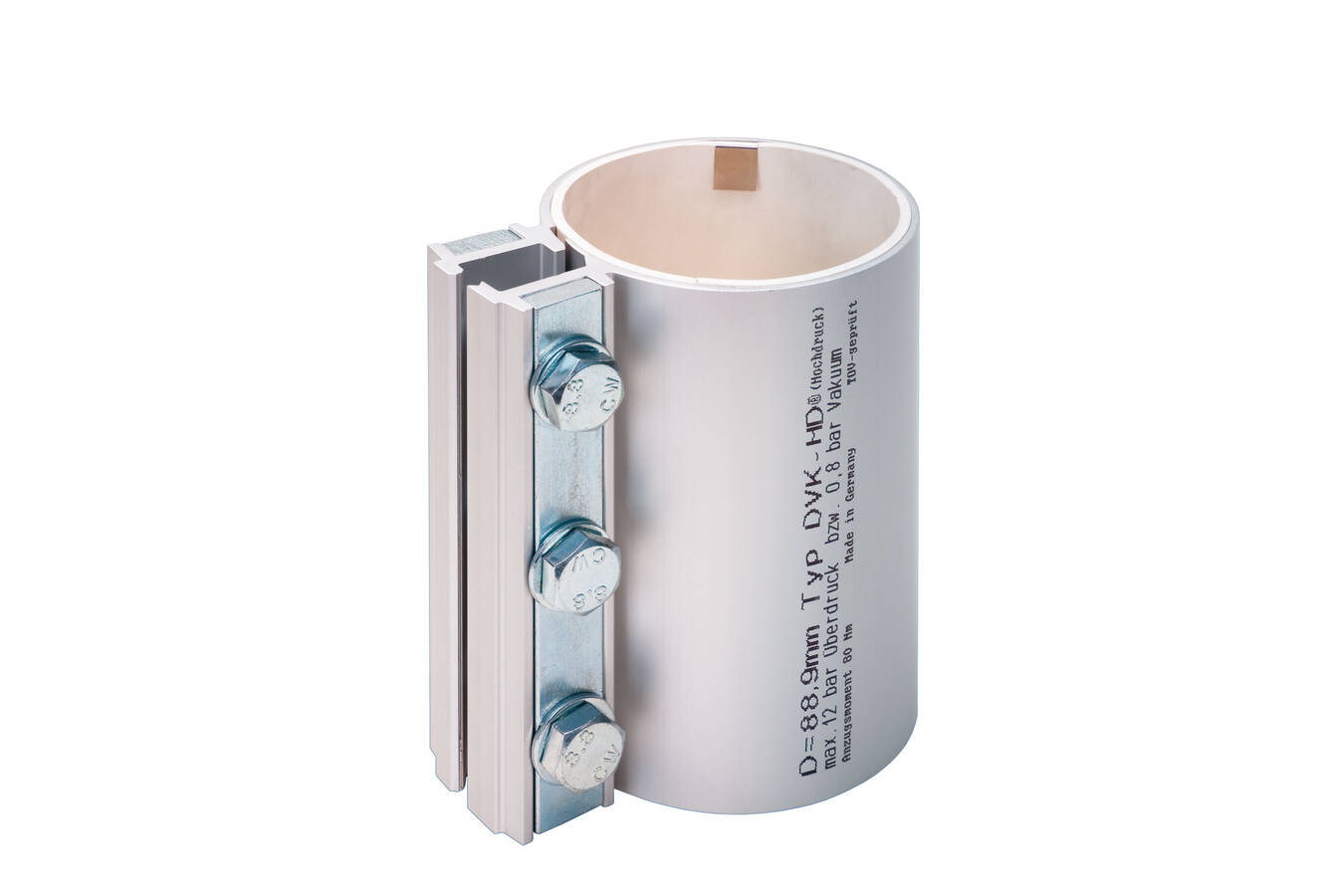

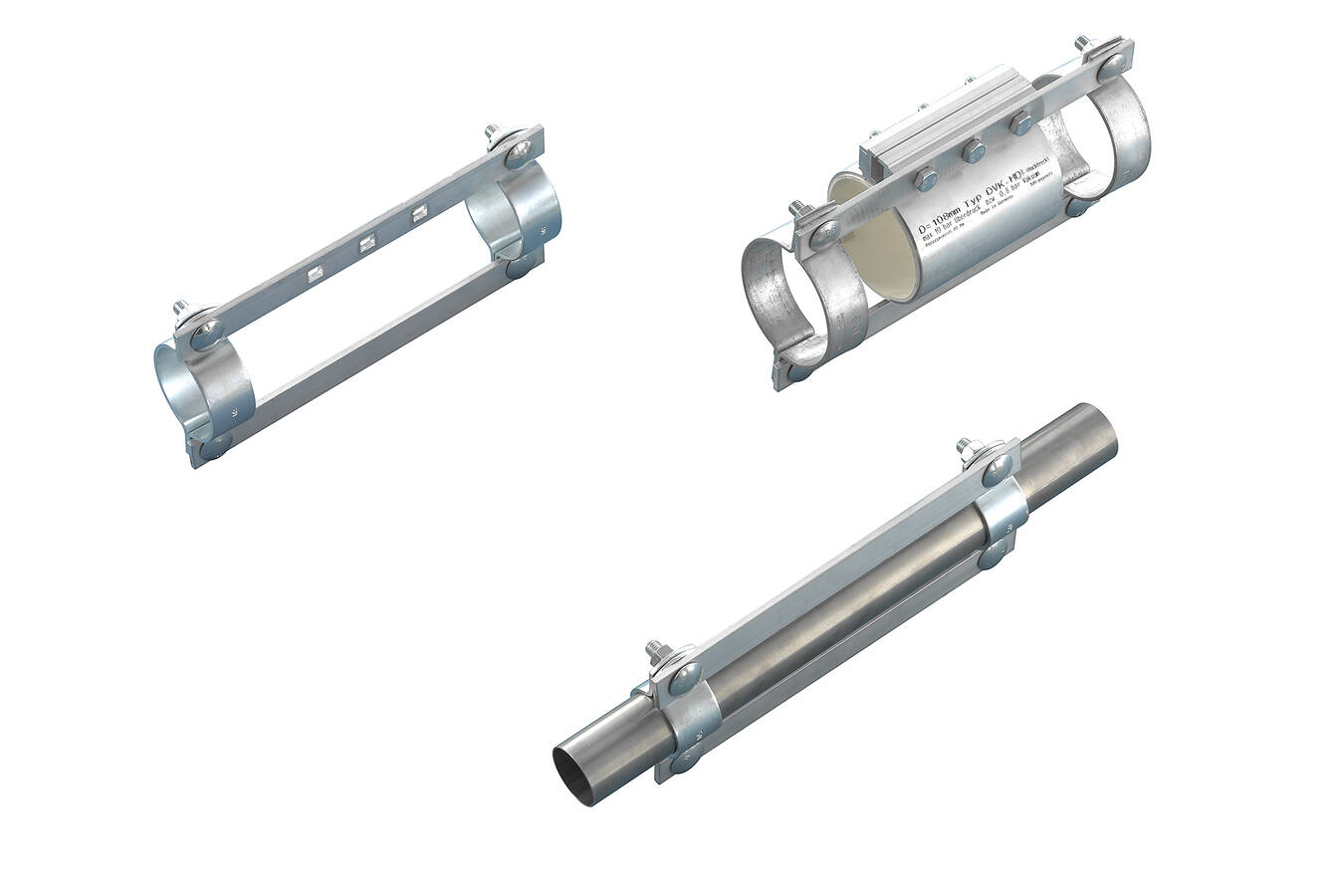

Pipe Couplings Type DVK-HD®

  • for pressure conveying
  • Diameter: 60.3 mm - 206.0 mm
  • gasket according purpose
  • Length: 100 mm / 150 mm / 200 mm or longer

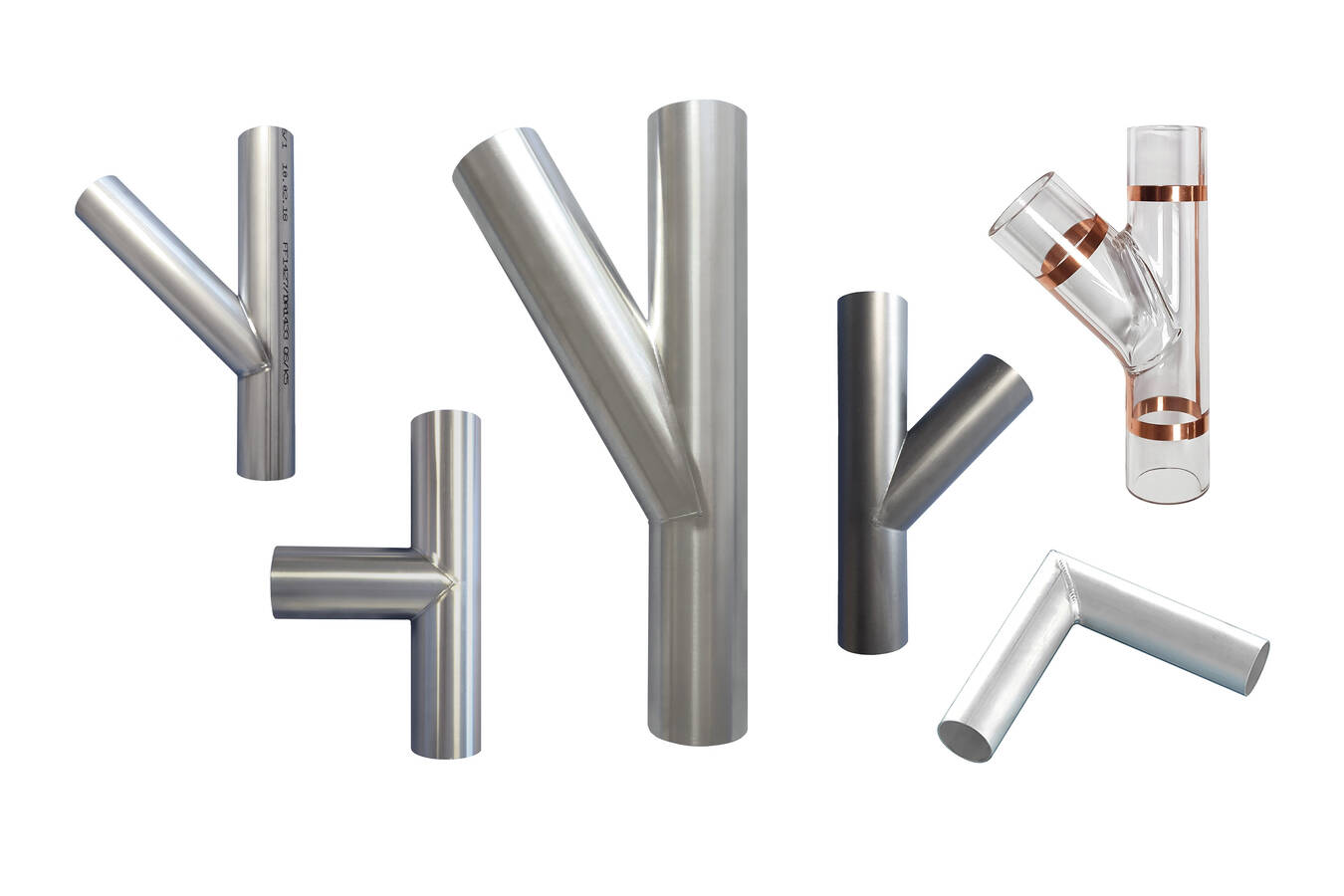

Stainless steel branch pipes, 30 °, 45 °, 90 °

  • Material: AISI 304 / 1.4301
  • Diameter: 38.0 mm - 206.0 mm
  • also formgas welded
  • also in highly wear-resistant version HVA NIRO®

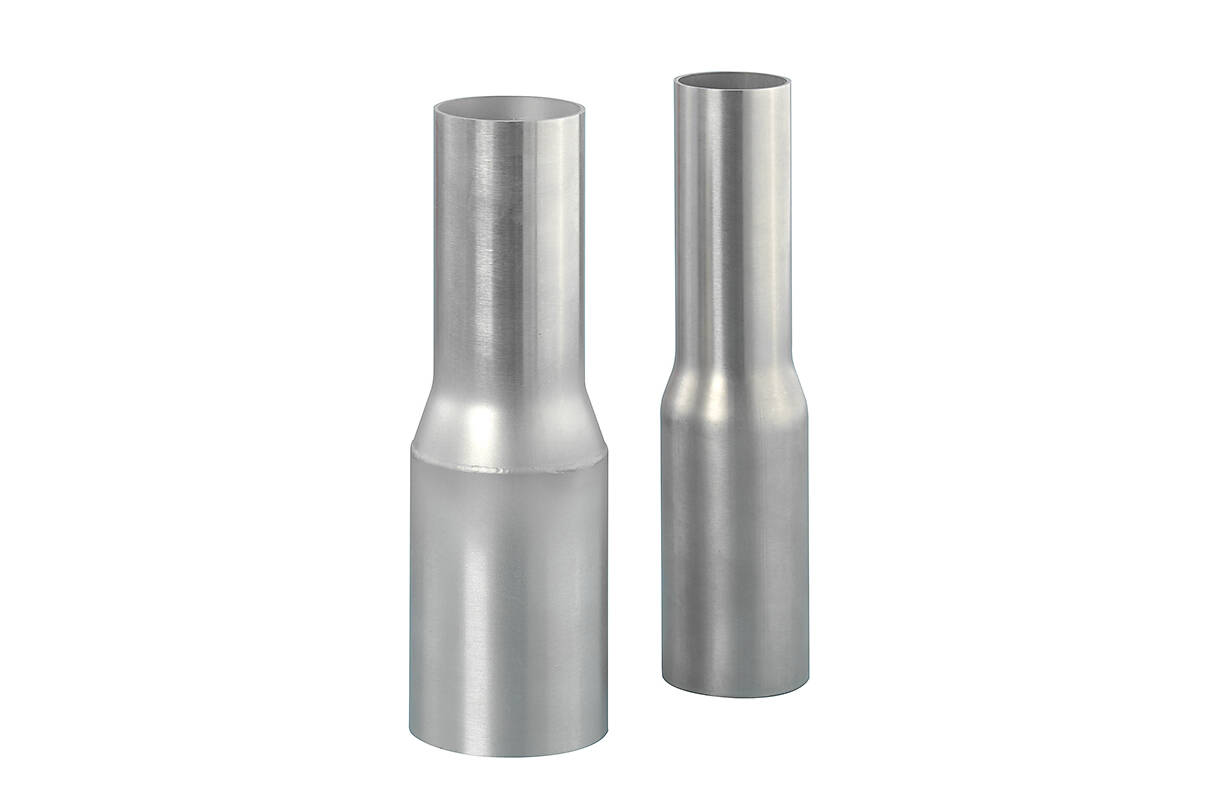

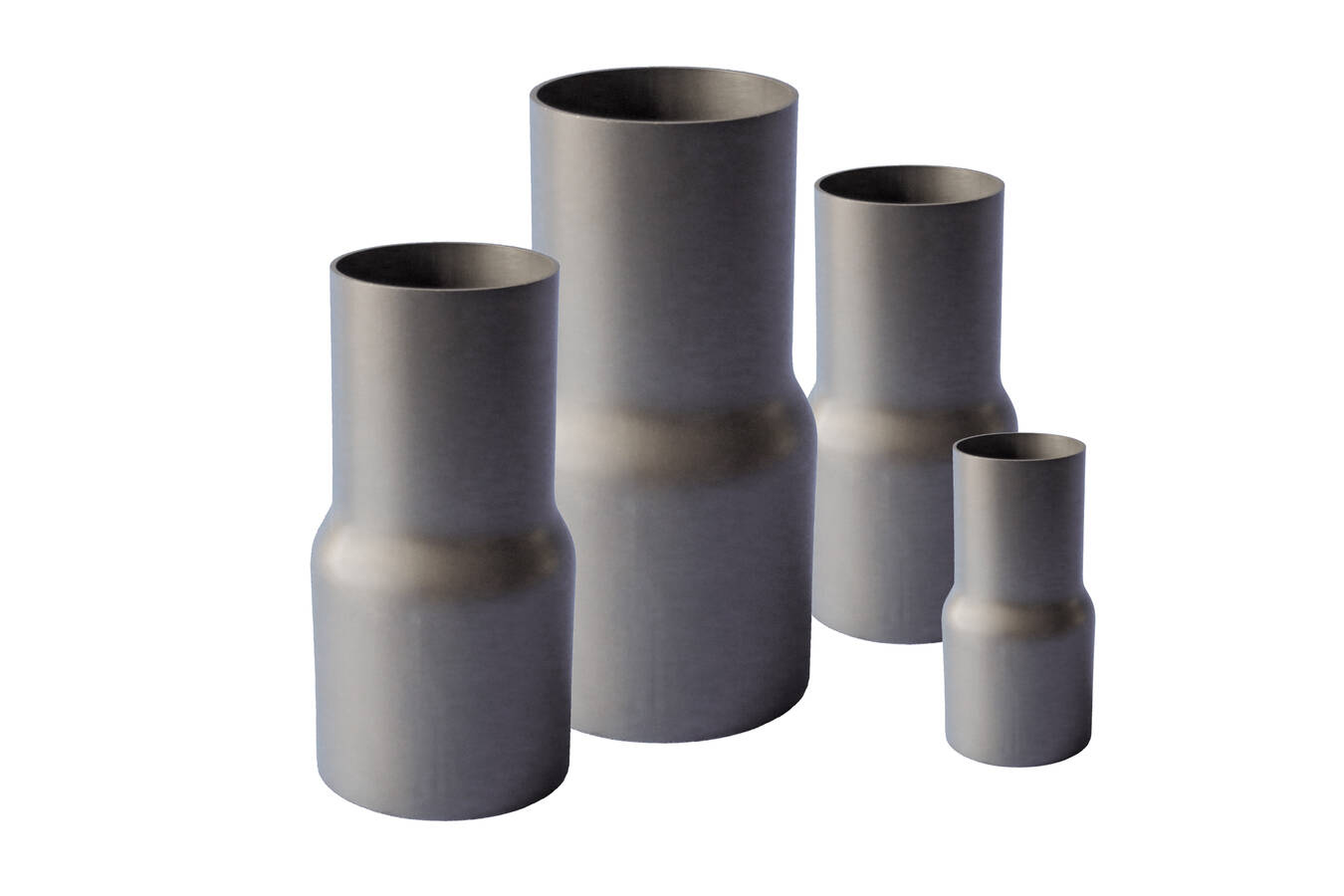

Stainless steel reducers

  • Material: AISI 304 / 1.4301
  • Diameter: 38.0 mm - 168.3 mm
  • also in highly wear-resistant version HVA NIRO®

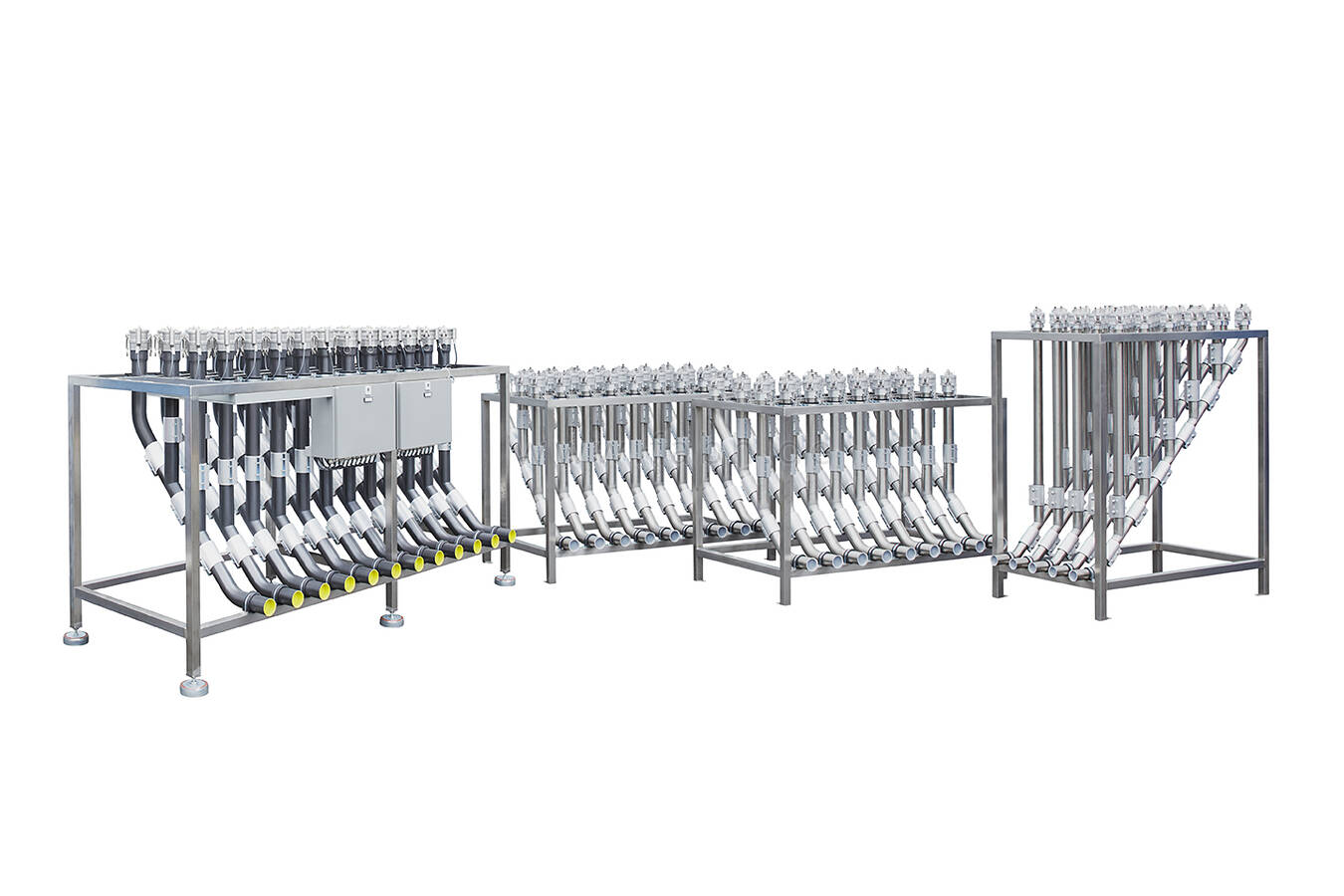

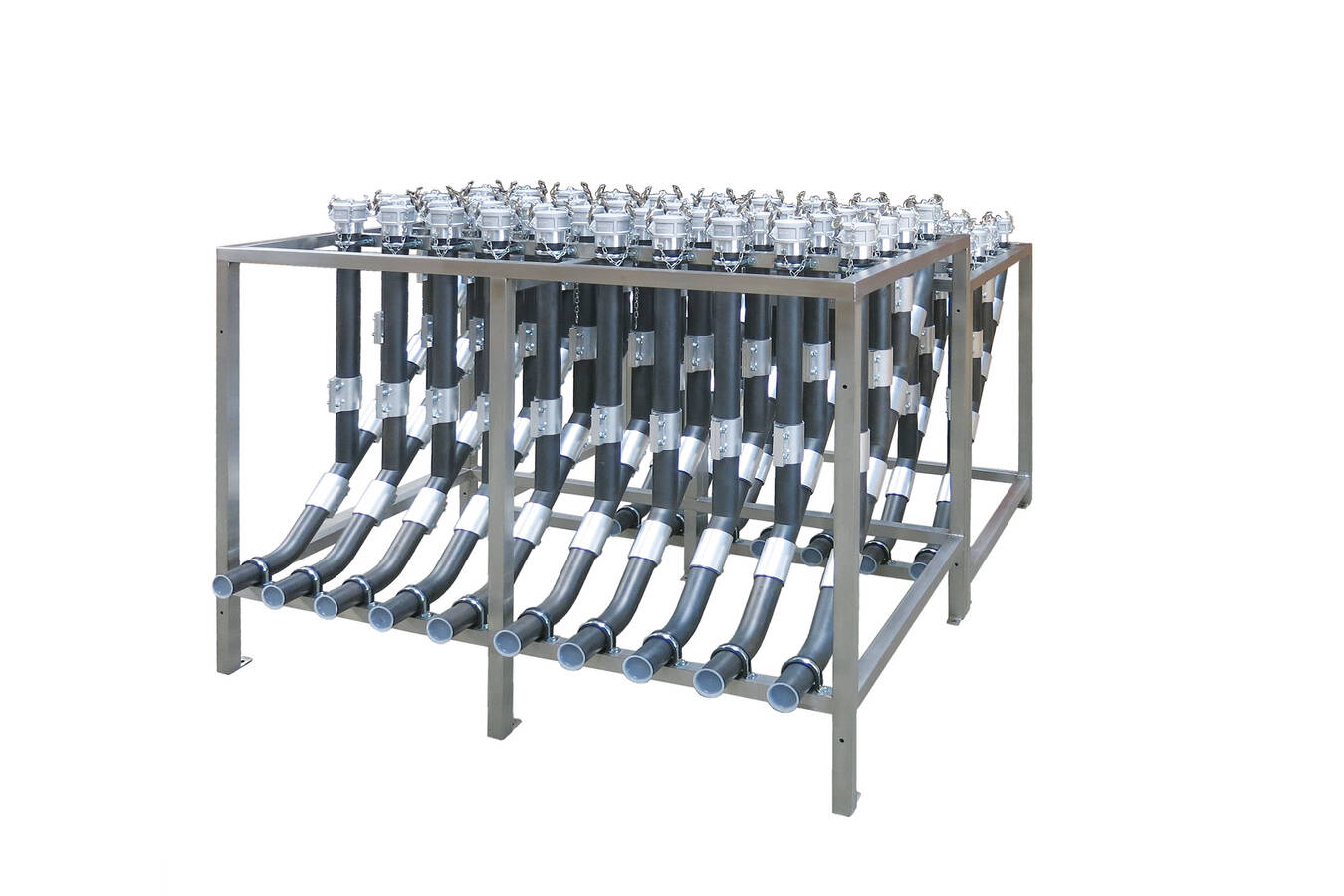

Coupling stations

  • Material: AISI 304 / 1.4301
  • components: stainless steel pipe bends, branch pipes, tubes
  • with couplings DVK 6 and camock couplings
  • according to your information / your drawing
  • We also create a CAD drawing for you for release.
  • also in highly wear-resistant version HVA NIRO®

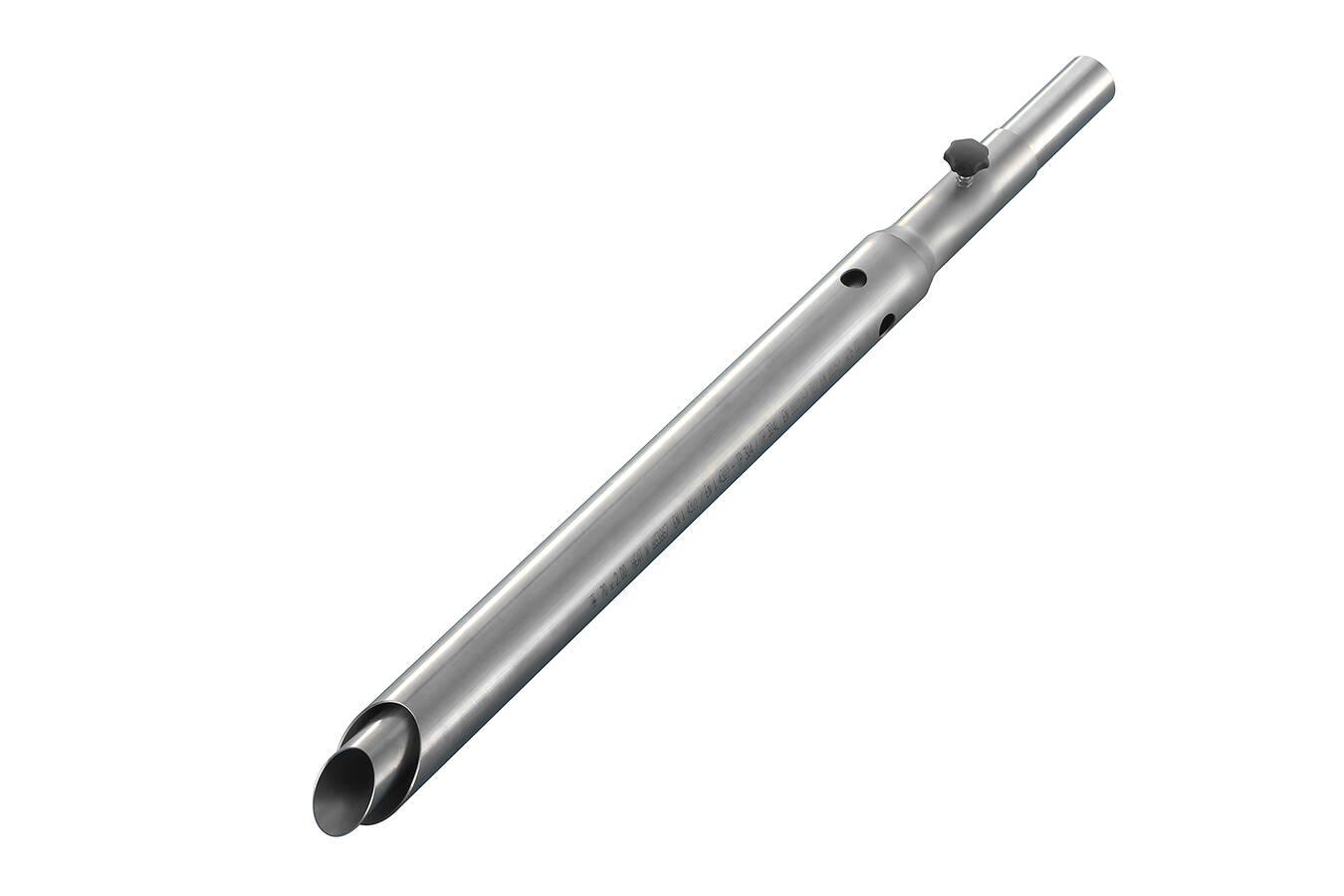

Suction lances stainless steel

  • Material: stainless steel AISI 304 / 1.4301
  • with spacer and 45° chamfered
  • with spacer
  • with 45°chamfered

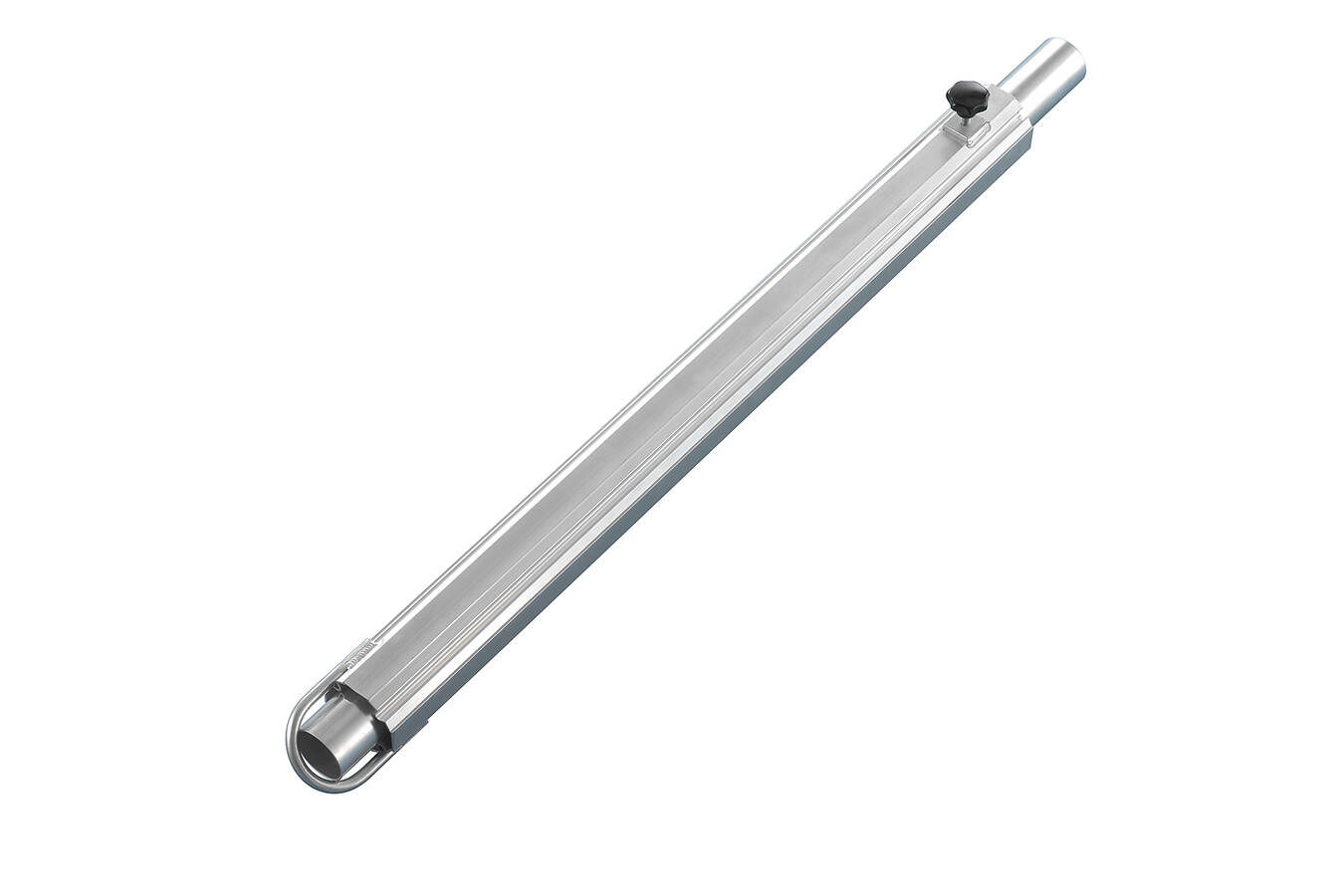

Suction lances aluminum

  • made of aluminum AlMgSi 0.5 F22
  • inside, with stainless steel tube,
  • with spacer
